Product Details
＋

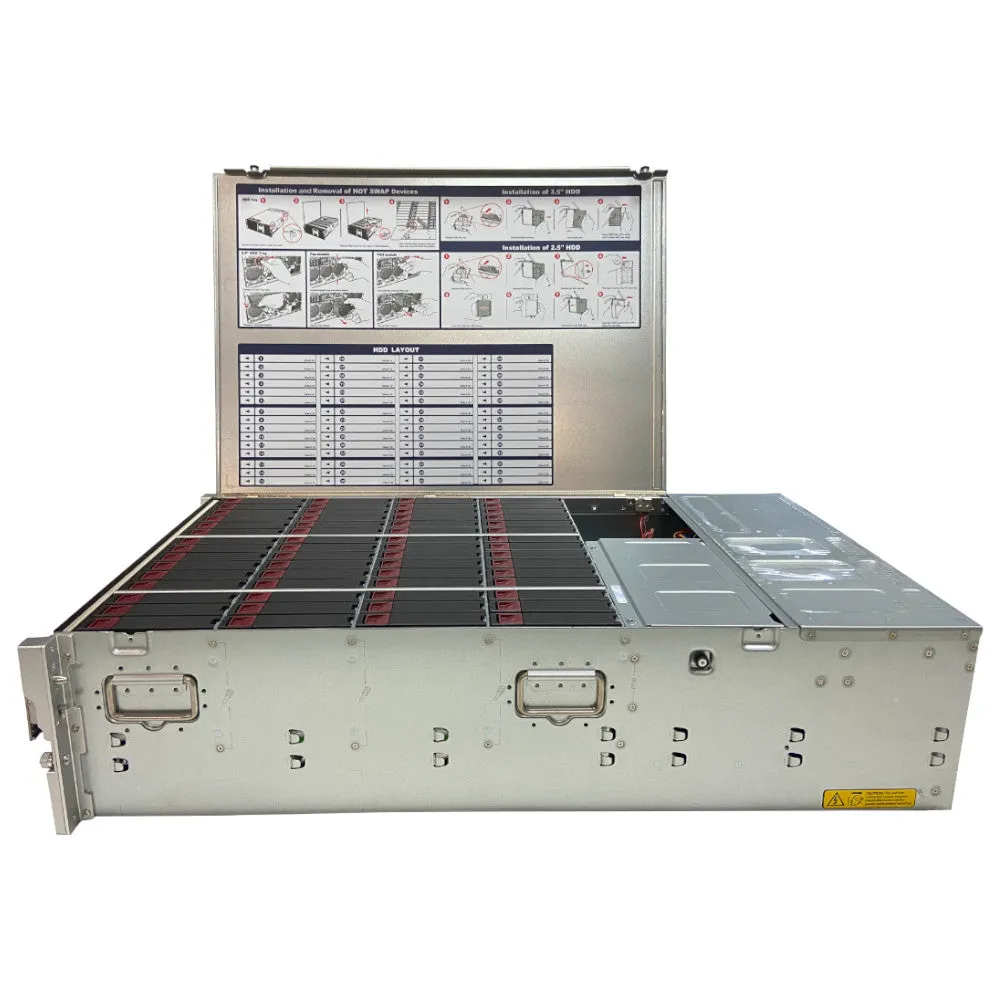

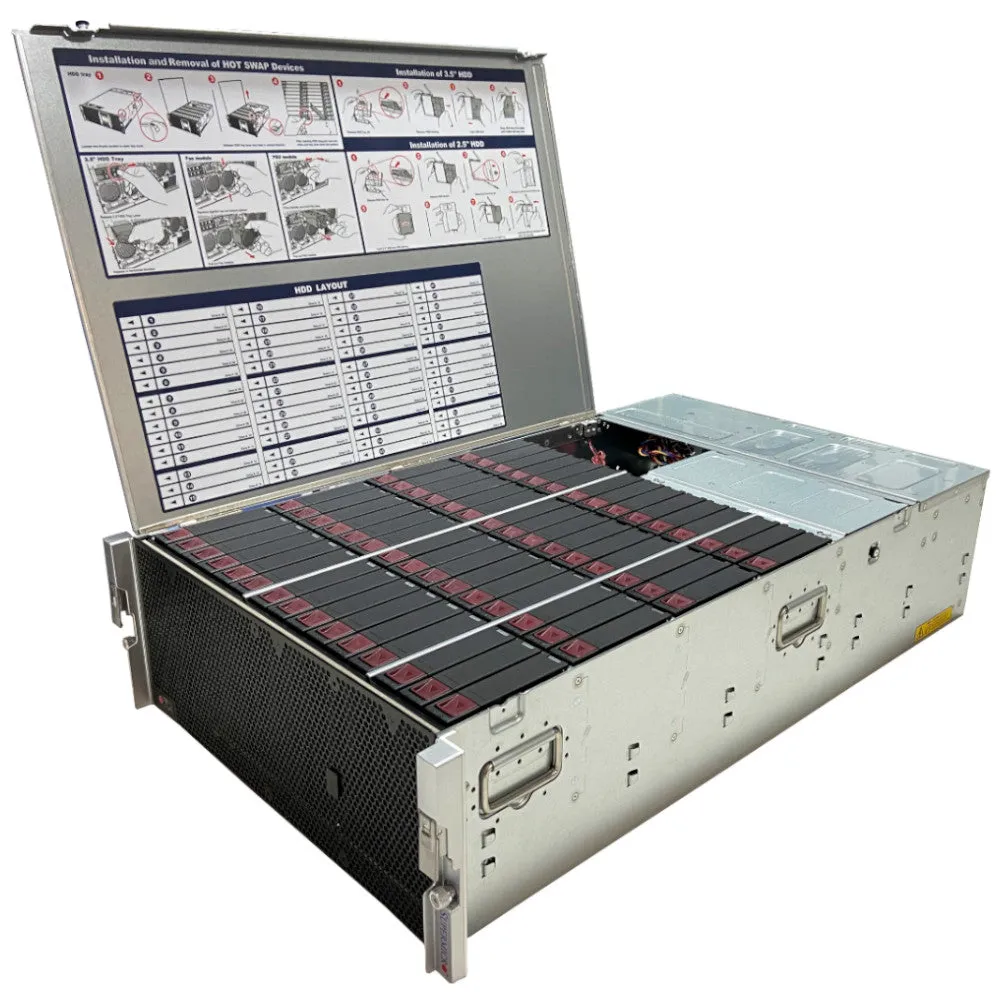

Supermicro SC946 JBOD 4U 60-Bay SC946SE1C-R1K66 CSE-946SE1C-R1K66JBOD
Highlights

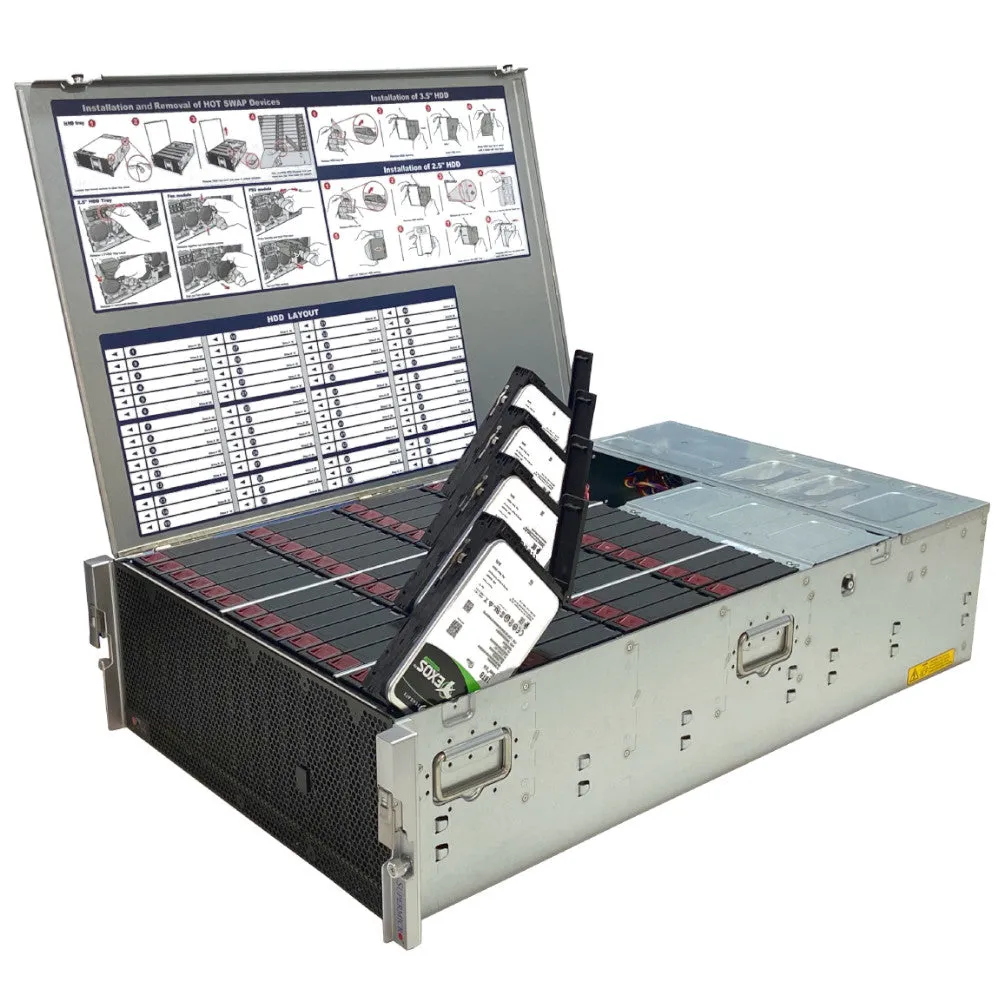

- Support 60 x 3.5" Top Loading SAS/SATA 12Gb/s Hot Swapping HDD/SSD Bays
- Tool-less HDD tray with HDD LED indicator
- Single Expander Backplane Boards support SAS3/2 HDDs with 12Gb/s throughput
- 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements
- 1x IPMI port for Remote System Power on/off and system monitoring
- Support NTP for time synchronization & RTC battery backup

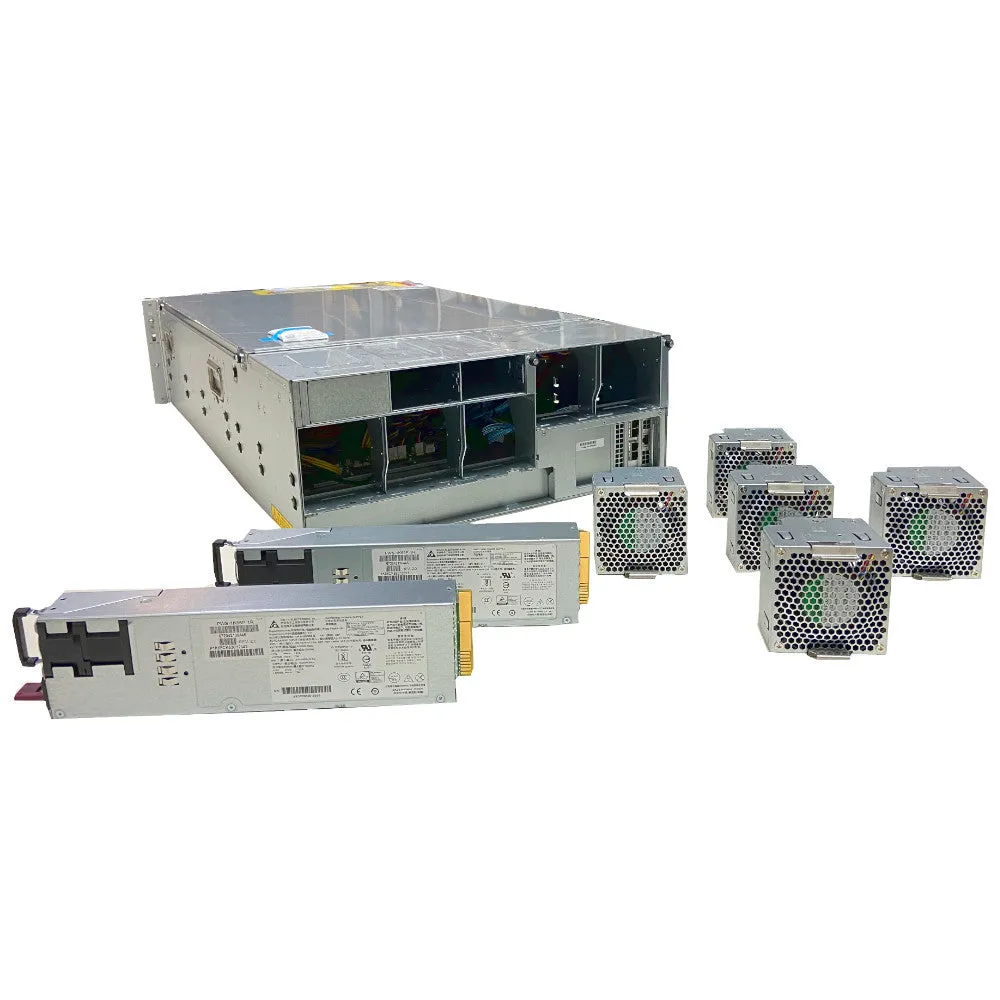

- 1600W (1 1) Redundant High-efficiency Platinum Level Power Supplies
- Optimized cooling w/ 5x 80x38mm rear hot-swap fans
- Ideal for Cloud backup, data Replication or High density Archive Storage Applications
Manual:
Manufacturer Product Page:
Note: Many configurations available, contact us via or for custom config. options.
| Max. Drives | 60 x 3.5in drive bays |
| Drive Interface | 12Gb/s SAS |
| Host Interface | 4 x Mini-SAS HD ports for Internal / External Cascading Expander Combination for high performance, high availability or high redundancy requirements |
| Weight | Net Weight: 100 lbs (45.36 kg) |
| LED Indicators | 1 Network Activity LEDs Power Status LED Power Fail LED System Information LED |
| Physical Dimensions | Height: 7 in (178 mm) |
| Management | 1x IPMI port for Remote System Power on/off and system monitoring |
| Power | 1600W redundant power supply, Platinum level with PMBus & I2C
|
| Cooling | 5 x 80mm rear hot-swap exhaust PWM fan(s) |
| Environmental | Operating Temperature: 5 C to 35 C |
| Serviceability | Tool-less HDD trays with HDD LED indicator, Top Loading Drive Bays |
| Standard Parts List | |||
|---|---|---|---|
| Part Number | Qty | Description | |
| Bracket | MCP-120-84702-0N | 1 | CB3 mounting bracket for use on chassis with CB2 holes. Bracket to mount CB3 card on existing CB2 standoff on SC847/SC417/SC837/SC826/SC836/SC846 in JBOD configuration.,HF,RoHS/REACH,PBF |
| Bracket | MCP-120-84705-0N | 1 | LP PCI bracket for CBL-NTWK-0587 LAN extension cable,HF,RoHS/REACH,PBF |
| Bracket | MCP-320-94601-0N | 1 | |
| Bracket | MCP-320-94602-0N | 1 | |
| HD Backplane | BPN-SAS3-946SEL1 | 2 | 30-port 4U 946S Top-load SAS3 12Gbps single-expander midplane, support up to 30x 3.5-inch SAS3/SATA3 HDD/SSD |
| Control Board | CSE-PTJBOD-CB3 | 1 | JBOD chassis power control board with IPMI remote on/off feature |
| Cable(s) | CBL-0087 | 1 | CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM |
| Cable(s) | CBL-0160L | 2 | US POWER CORD 16AWG, PB FREE |
| Cable(s) | CBL-0303L | 1 | 4PIN POWER CABLE, ST TO RA, 40CM |
| Cable(s) | CBL-0459L | 2 | AC Power Cord Latch Clamp |
| Cable(s) | CBL-CDAT-0601 | 2 | 4 Pin to 4 Pin I2C cable, 50cm, 26AWG |
| Cable(s) | CBL-NTWK-0587 | 1 | INT RJ45M/RJ45F Adapter W/ PCB 50CM 24AWG for SC847D JBOD |
| Cable(s) | CBL-PWCD-0578-1 | 2 | PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS |
| Cable(s) | CBL-PWCD-0578-IS | 2 | PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS |
| Cable(s) | CBL-PWEX-0861 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 32cm for SC946S |
| Cable(s) | CBL-PWEX-0862 | 1 | Powerlug to 5.7 Radsok, black 12AWG, 53cm for SC946S |
| Cable(s) | CBL-PWEX-0863 | 1 | Powerlug to 5.7 Radsok, yel 12AWG, 32cm for SC946S |
| Cable(s) | CBL-PWEX-0864 | 1 | Powerlug to 5.7 Radsok, yel 12AWG, 53cm for SC946S |
| Cable(s) | CBL-SAST-0833 | 2 | SLIMLINE SAS, INT, 55MM, 32AWG |
| Cable(s) | CBL-SAST-0834 | 2 | SLIMLINE SAS to MiniSAS HD, INT, 50CM, 32AWG |
| Cable(s) | CBL-SAST-0835 | 2 | SLIMLINE SAS to MiniSAS HD, INT, 100CM, 32AWG |
| Part(s) | MCP-270-94602-0N | 1 | |
| Part(s) | MCP-290-00135-0V | 1 | 4U Auto-latch left handle |
| Part(s) | MCP-290-00136-0V | 1 | 4U Auto-latch right handle |
| Part(s) | MCP-290-94606-0N | 1 | |
| Part(s) | MCP-290-94607-0N | 1 | |
| Part(s) | MCP-210-94604-0N | 1 | SC946S/L front bezel bracket |
| Part(s) | MCP-220-94604-0N | 1 | SC946S Motherboard tray |
| Part(s) | MCP-230-94603-0N | 1 | |
| Part(s) | MCP-240-94602-0N | 3 | |
| Part(s) | MCP-120-00062-0N | 3 | Blank LP L-bracket (5x5 square hole) |
| Fan(s) | FAN-0184L4 | 5 | 80x80x38 mm, 14.4K RPM, Rear Exhaust Fan for SC946S Chassis (60-bay) |
| Front Panel | FPB-FP829H | 1 | Front Control Board for SC829H chassis |
| Drive Tray(s) | MCP-220-94601-0N | 60 | SC946ED 3.5" / 2.5" tool-less HDD tray |
| Power Distributor | PDB-PT946S-L824 | 1 | 4U PDB support over 2KW for SC946S and 45bay system.,RoHS |
| Power Supply & Accessory | PWS-1K66P-1R | 2 | 1U 1600W Redundant Platinum Power Supply 73.5mm width,RoHS/REACH,PBF |
| Mounting Rail(s) | MCP-290-00133-0N | 1 | Cable Management Arm, 2U height, 4 |
| Mounting Rail(s) | MCP-290-00137-0N | 1 | Rail set, Auto-latch, quick/quick, default 4U 17.2";W |
| Rear Window | MCP-240-94604-0N | 1 | SC946S rear window, NO I/O. w/ 3x LP slots |
| Optional Parts List | |||
|---|---|---|---|
| Part Number | Qty | Description | |
| Adaptor Bracket | MCP-290-00166-0N | 1 | Threaded rail adapter, auto latch, for round hole rack,RoHS |
| Cable | CBL-SAST-0677 | - | 3m 12G external Mini SAS HD to external mini SAS HD.28AWG,RoHS/REACH |
| CBL-SAST-0690-1 | - | MINI SAS HD,12G,EXT,2M,30AWG,RoHS |
