Highlights
- Up to 102 Ultrastar HDDs (SAS or SATA)
- Up to 1.8PB raw capacity in 4U using 18TB CMR HDDs
- Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of the drive slots
- Dual-port SAS for high availability or single-port SATA for low cost
- Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
- 5-year limited warranty
- Many configurations available, contact us via Live Chat or call us for more options
Applications and Workloads
- SDS Environments
- Big Data
- Private Cloud
- Data Analytics
- Cloud Infrastructure
IsoVibe Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.
ArcticFlow Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
| Max. Drives | 102 x 3.5" drive bays |
| Drive Interface | 12Gb/s SAS |
| Available Drive Capacities | HDD up to 18TB CMR |
| Host Interface | Dual redundant I/O Modules (IOM) |
| Weight | Without Drives: 31.8kg (70lbs) |
| LED Indicators | Front/Rear: Power, ID, Fault Drive: Activity, Fault |
| Physical Dimensions | Height: 175mm (6.89") |
| Management | SCSI Enclosure Services |
| Power | Dual 1600W, 80 Platinum |
| Cooling | 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention |
| Environmental | Operating Temperature: 5 C to 35 C |

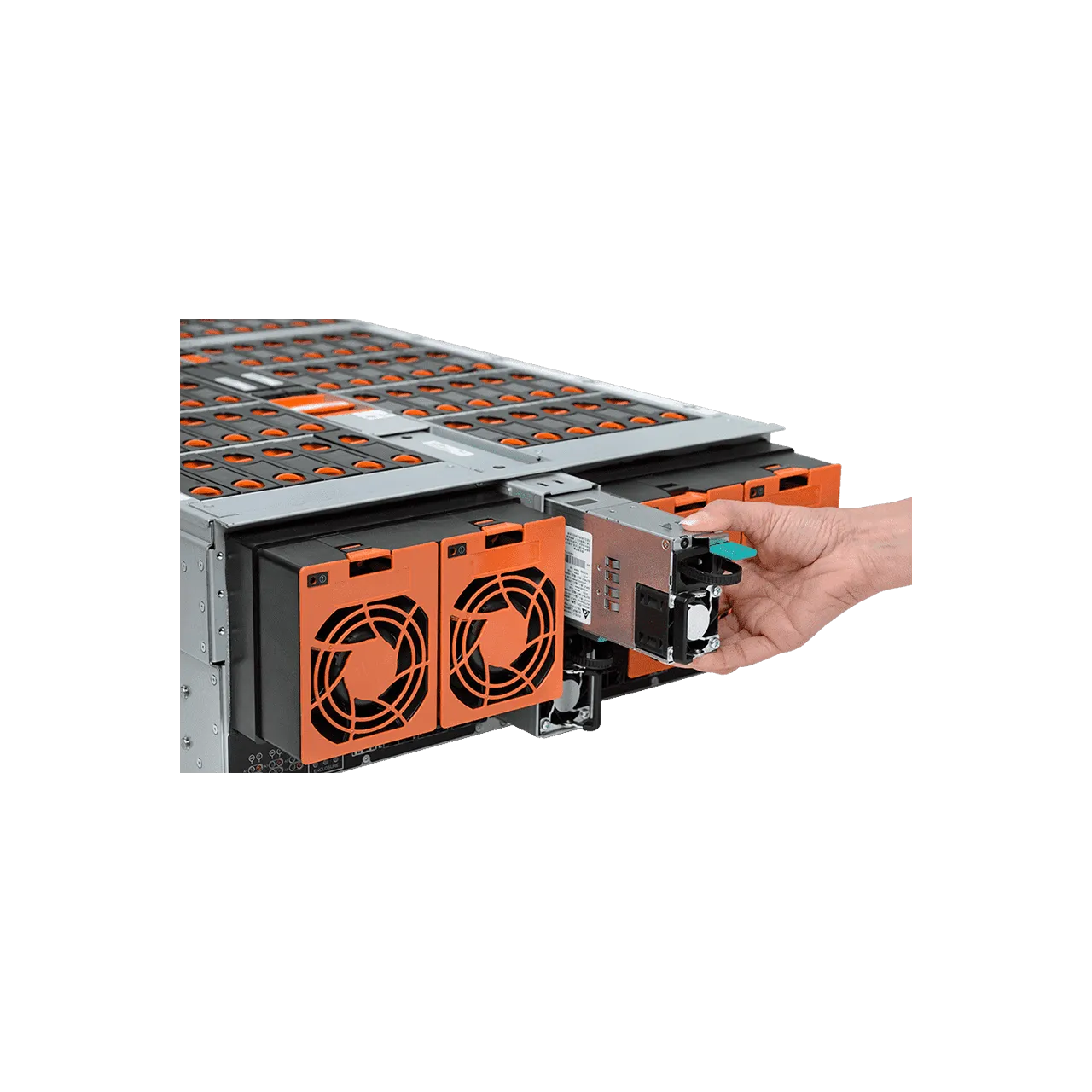

| Serviceability | Cable-free hot-swappable IOM, power supply, fans and drives |
