• Only compatible with Western Digital Ultrastar Hard Drives

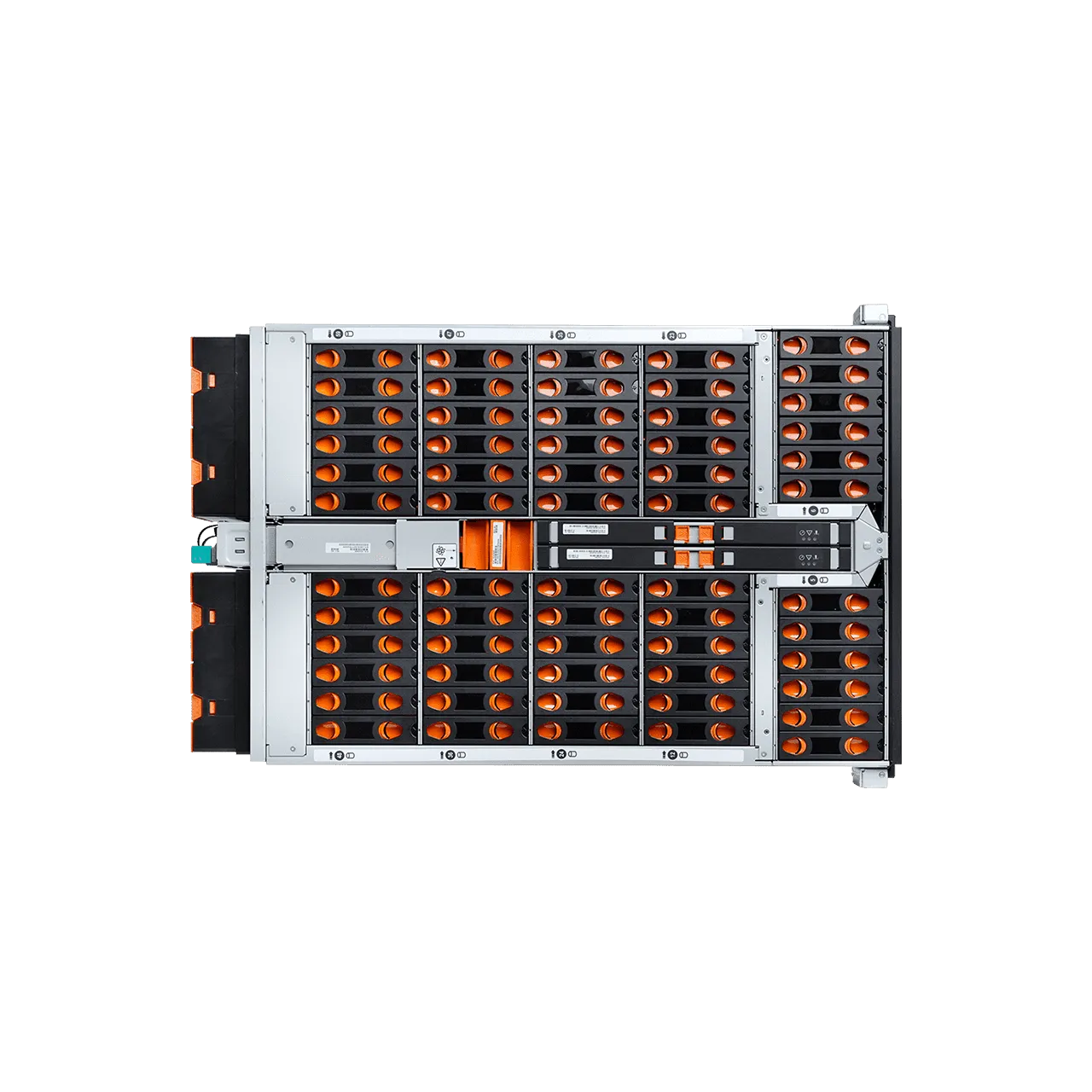

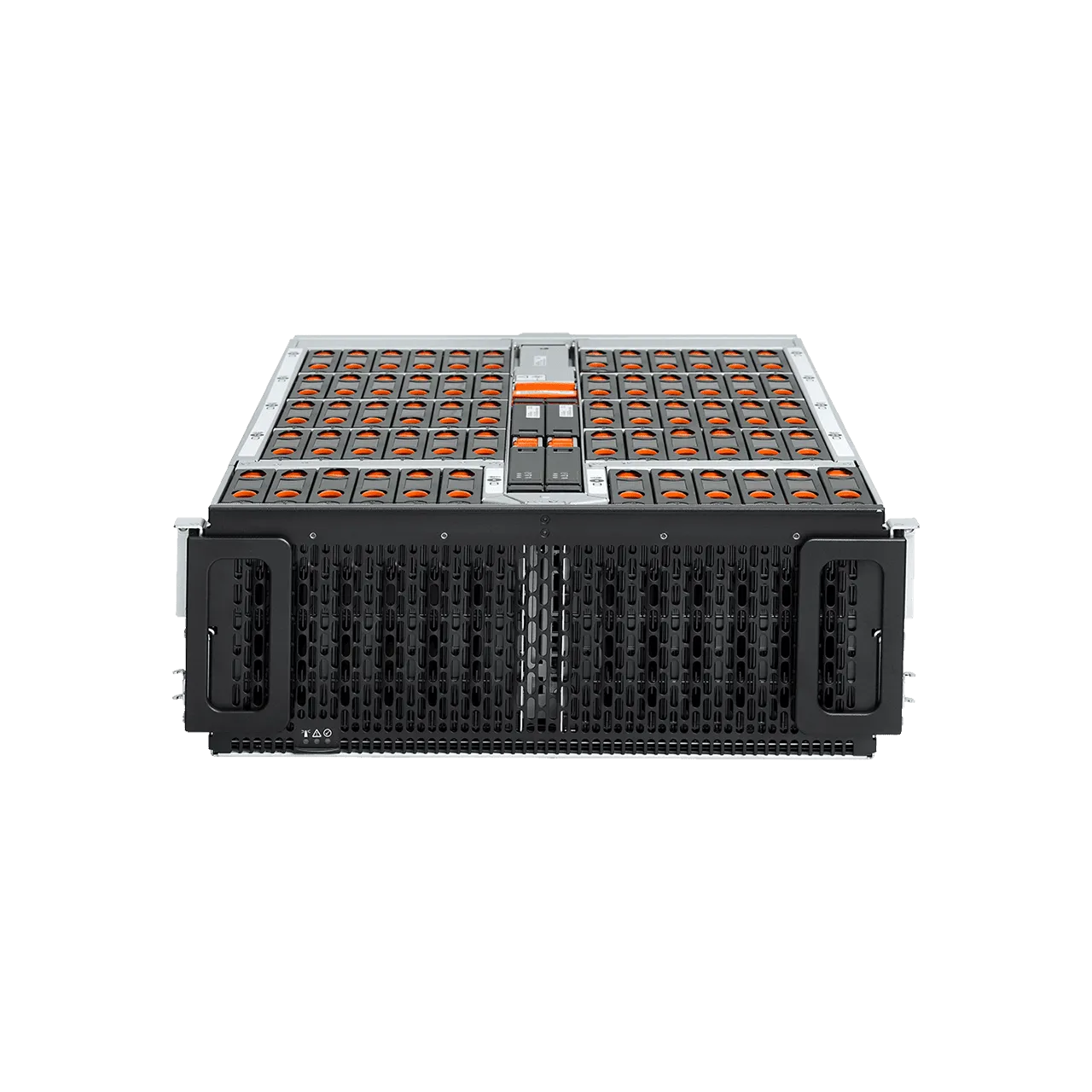

• Up to 60 Ultrastar HDDs (SAS or SATA)
• Up to 1.3PB raw capacity in 4U using 22TB HDDs
• Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
• Up to 4 units may be daisy-chained for a total raw capacity of over 4PB

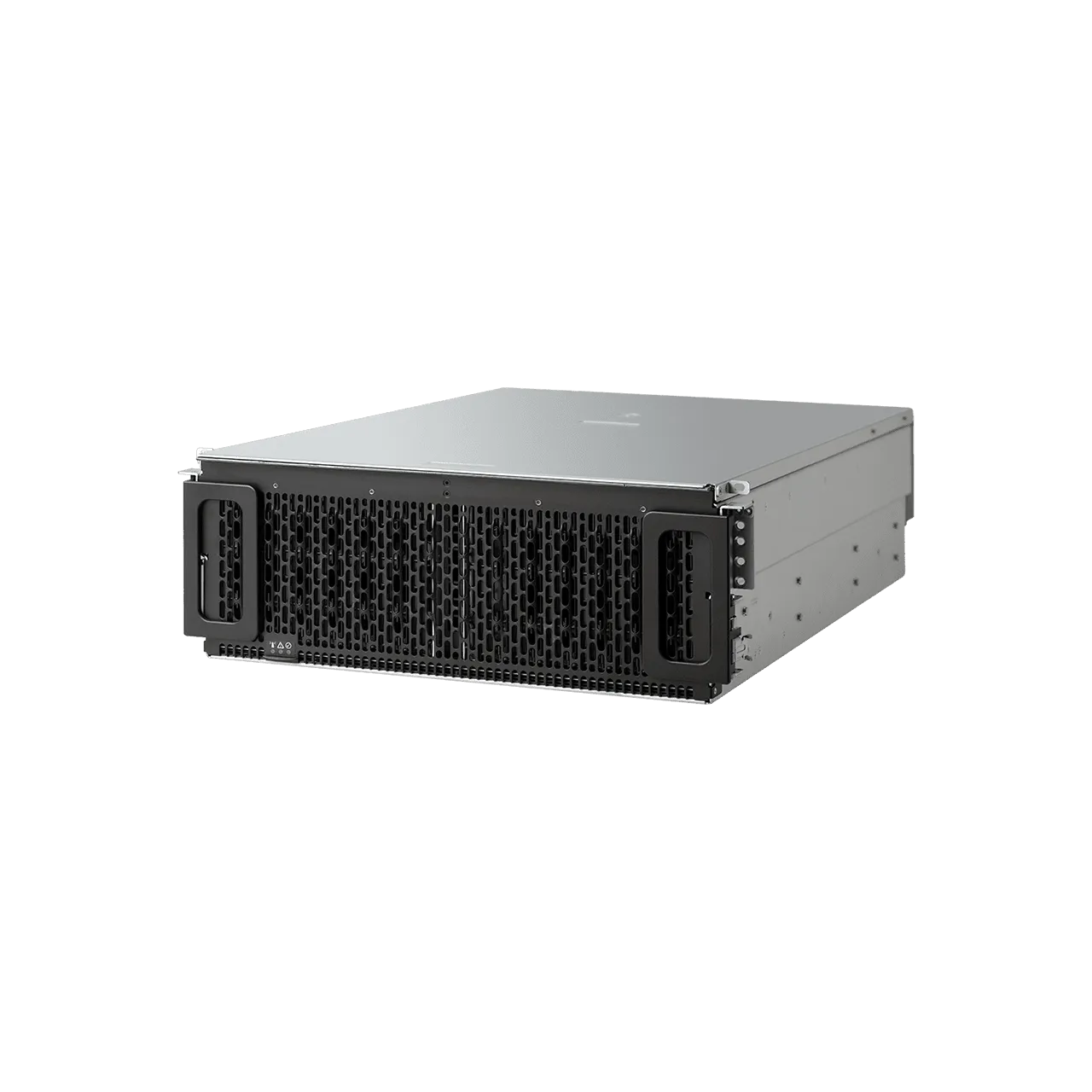

• 4 rack units height, 712mm Depth
• Dual-port SAS for high availability or single-port SATA for low cost
• Up to 12 x 12Gb/s SAS-3 host connections (SATA HDD configurations including 2x I/O module with 6x Mini-SAS HD connections)

• Rack-mounted top cover for quick and easy service
• Patented IsoVibe technology ensures maximum performance even in heavy workloads

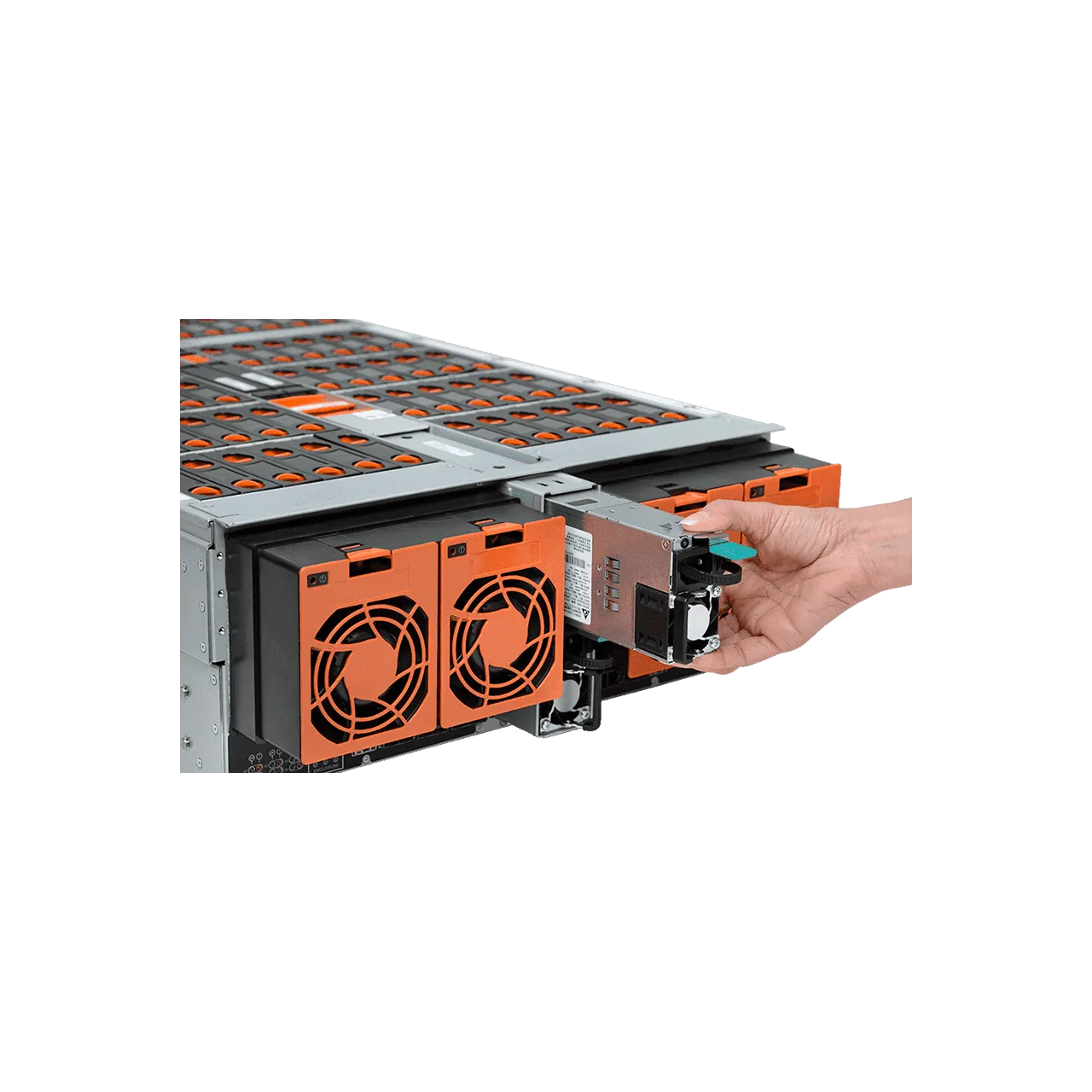

• Enterprise-grade redundant and hot-swappable 1600w Platinum PSUs, I/O modules, and fans
• Seller Refurbished - 6 Month Warranty
• When purchased with recertified hard drives, the drives inside of the JBOD will come with a 2 year warranty. The JBOD will have a 6 Month warranty.
• JBOD ships with Rails, 2x mini SAS Cables, Trays(Bare JBOD) and Power Cable

Note: Many configurations available, contact us via or for custom options.

Compatibility Matrix:

Installation Guide:

Product Brief:

Tech Brief:

Manual:

Applications and Workloads

• SDS Environments
• Big Data
• Private Cloud
• Data Analytics
• Cloud Infrastructure

IsoVibe Vibration Isolation Technology
Precise cuts in the baseboard provide a suspension for the drives in the chassis, isolating them from transmitted vibration. The result is that consistent performance is maintained, even when all the drives are working hard.

ArcticFlow Thermal Zone Cooling Technology
By introducing cool air into the center of the chassis, drives operate at lower and more consistent temperatures than conventional systems. This results in lower fan speeds, reduced vibration, lower power consumption, quieter operation and ultimately higher reliability.
